Description

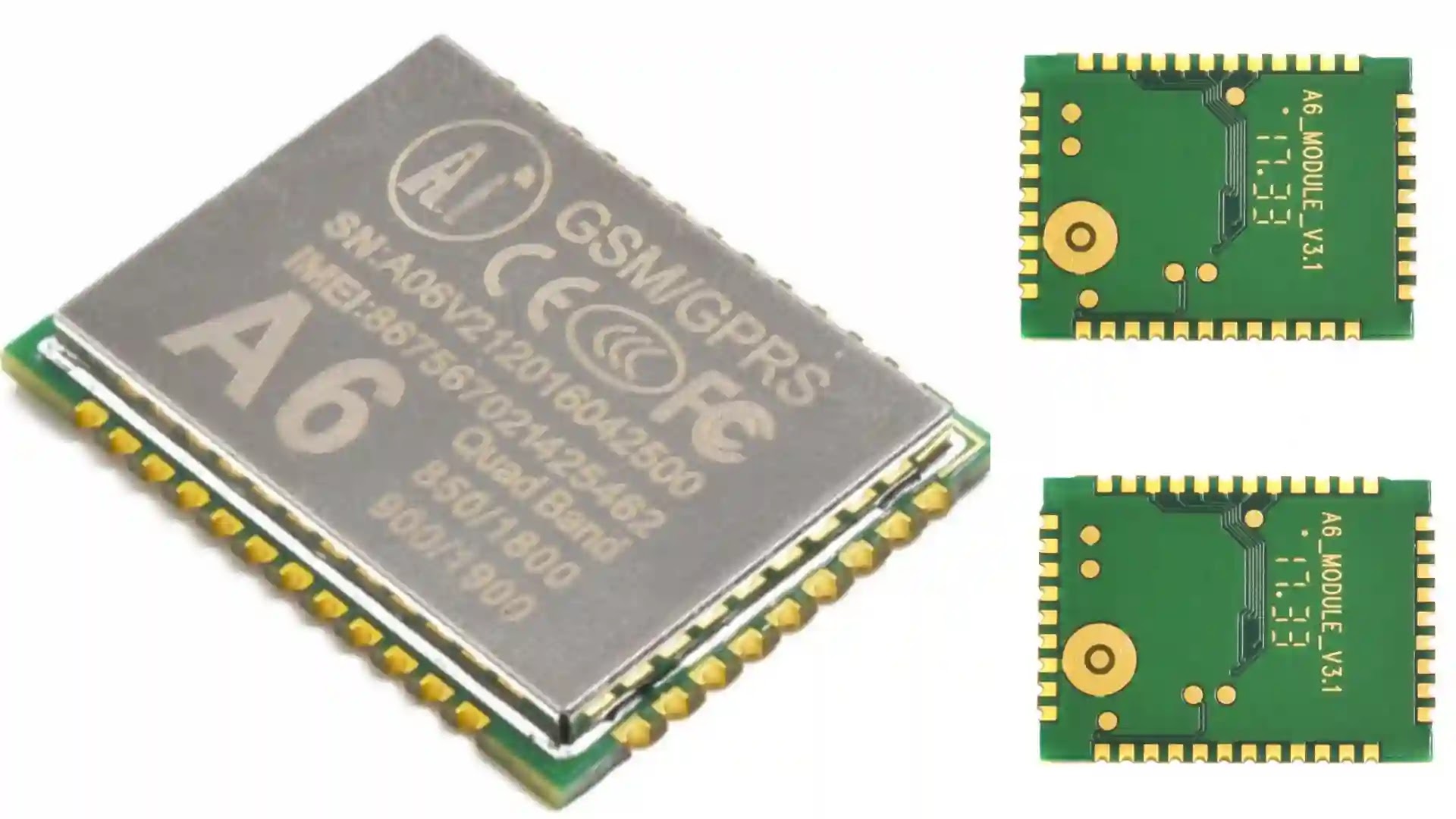

The A6 Module provides a serial port to communicate via GPRS, sending text messages and phone calls. The GPRS functions can be used for IoT project which does not require WiFi connection condition. The GSM functionality of the module provides more ways to send commands to your IoT device.
Combine with our breakout board and get started on your IoT communication!
Specifications
Dimension: 22.8×16.8×2.5mm
Frequency: 850, 900, 1800, 1900 MHz
GPRS multi-slot: 12, 1-12 configurable
GPRS Station: Class B
Compatible GSM Phase 2/2+: Class 4 (2W @ 850/ 900 MHz), Class 1(1W @ 1800/1900MHz)
Operating Voltage: 3.3 - 4.2V
Current: 1.3mA @ DRX=5, 1.2mA @DRX=9
Temperature: -30 degree to +80 degree
Weight: 3.0g
AT Command: Standard GSM07.07,07.05 AT command and Ai-Thinker extend command
GPRS Class 10 speed: max. 85.6 kbps (up), 42.8kbps (down)
Support PBCCH, CSD, USSD
Protocol Stack: PPP, TCP, UDP, HTTP, FTP, SMTP, MUX
Certification: CE, FCC, ROSH, CTA
